Laboratory Sinks

Canadian Scientific Lab Systems is the premier distributor and installer of Durcon® Epoxy lab sinks in Canada.

We take pride in our complete line of Durcon® Epoxy sink products including drop-in sinks, undermount sinks, double bowl sinks, outlets & accessories, cup sinks, specialty sinks, and troughs.

What are epoxy lab sinks?

Durcon® epoxy lab sinks are molded monolithic epoxy resin. They are made with a unique process that includes a special curing stage to ensure a complete chemical reaction throughout the material. This results in a uniform work surface of the highest quality.

Our epoxy resin lab sinks are the preferred choice for harsh laboratory, classroom, and research environments thanks to their superior chemical resistance, non-flammability, non-absorbency, vibration damping, and easy-to clean design.

Superior solutions for your laboratory.

Canadian Scientific will help you determine the correct epoxy lab sink for your application, offer design assistance, and after-installation care & maintenance suggestions.

Sink Products

DropIn Lab Sinks are the new industry standard due to the ease of installation and the easy cleaning, safety and durability of the radiused interior and exterior edges. Double DropIn Sinks, shallow basin and graduated depth ADA DropIn Sinks are available to accommodate lab users with special needs and help conform to ADA guidelines.

Undermount Lab Sinks have been a tradition for over 40 years, and still requested for new and renovated academic science rooms. Bonded double undermount lab sinks are available by special request.

Lab Cup Sinks are Polypropylene and epoxy oval, rectangular and round cup sinks.

Outlets & Accessories include Polypropylene sink outlets with strainers, Overflow tubes & strainer caps, and sink stoppers.

DrainTops are specially designed for all epoxy end-run or in-line worksurfaces for advanced liquid control in lab sink areas. Features include integrally-molded raised-rib drain boards and a 1/4" [6mm] tall marine rim for large spill containment. DrainTop worksurfaces gently slope from the containment rim to the sink area for improved drainage. Drain board sections are curved raised ribs that facilitate glassware drying and improved cleanups. The lab sink area can be machined to accommodate all single or double DropIn Lab Sinks and applicable fixtures. DrainTops can be used at the end of islands and peninsulas or wall elevations with available external lengths of 54" (1372mm), 60" (1524mm), 66" (1676mm) or 72" (1829mm) sections.

Troughs include DropIn Troughs, UnderMount Troughs, and Sectional Undermount Troughs.

Drop-In Sinks

Bowl Inside Dimensions (in)

Cutsheets	Outlet Placement	Weight (lbs)	Length (in)	Width (in)	Depth (in)	ADA Compliant
D01C	Center	9	9	6	5.8
D03C	Center	16	12	8	5.8
A05	Corner	18	14	10	5
D05	Corner	24	14	10	6.25
D05C	Center	24	14	10	6.25
D06C	Center	34	12	12	12
A07	Corner	24	14	14	5
D08	Corner	25	15	8	6
D09	Corner	25	15	8	10.75
D10E	End	22	16	8	6.75
D10C	Center	22	16	8	6.75
D15	Corner	30	16	12	8
D15C	Center	31	16	12	8
D19	Corner	42	16	16	9.56
D20	Corner	32	16	16	7.5
D21	Center	58	16	16	15
D22C	Center	20	18	6.5	6
D24C	Center	30	18	14	10.5
A25	Corner	35	18	15	5
A25M	Corner	30	18	15	2.375
D25	Corner	39	18	15	7.88
A26	Corner	39	18	15	5.00 / 11.00
D30	Corner	58	18	15	10.75
D30C	Center	50	18	15	10.75
D30D	Corner	110	37.5	15	10.75
D32	Corner	49	18	15	15.13
D33	Corner	59	21	17	9.75
D33E	End	59	21	17	9.75
D45	Corner	61	21.5	15.5	11
D50	Corner	54	24	16	8.25
D50C	Center	54	24	16	8
D51	Corner	60	24	16	9.62
D52	Corner	77	24	18	11
D54	Corner	45	25	15	8
A55	Corner	51	25	15	4.75
D55	Corner	72	25	15	10
A56	Corner	70	25	15	5.00 / 11.00
D57	Corner	71	25	15	13.62
D58	Corner	79	25	15	17.75
D59	Corner	74	28	15	11.75
D61	Corner	94	30	16	17.75
D65C	Center	98	35.5	19.5	9.75
D68E	End	120	30	16	10
D70C	Center	77	24	16	15.5
DL78C	Center	94	36	18	12
D99	Center	61	31	18	10
DRS10	Center	14	10	Diameter	7.75
DRS12	Center	18	12	Diameter	7.75
DH20C	Center	65	30	26	7

ADA compliant sinks are designed for wheel chair accessible lower height Countertops
Outlets & accessories are ordered in addition to or separately

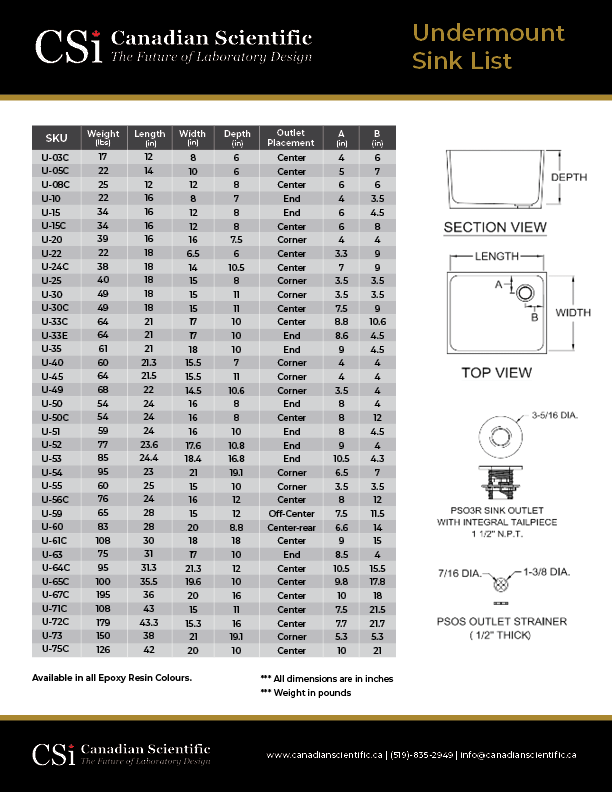

Undermount Sinks

Bowl Inside Dimensions (in)

Cutsheets	Outlet Placement	Weight (lbs)	Length (in)	Width (in)	Depth (in)
U03C	Center	17	12	8	6
U05C	Center	22	14	10	6
U08C	Center	25	12	12	8
U10E	Center	22	16	8	7
U15C	Center	34	16	12	8
U15E	End	34	16	12	8
U20	Corner	39	16	16	7.5
U22C	Cener	22	18	6.5	6
U24C	Center	38	18	14	10.5
U25	Corner	40	18	15	8
U30	Corner	49	18	15	11
U30C	Center	49	18	15	11
U33C	Center	64	21	17	10
U33E	End	64	21	17	10
U35E	End	61	21	18	10
U40	Corner	47	21.3	15.5	7
U45	Corner	64	21.5	15.5	11
U49	Corner	68	22	14.5	10.6
U50C	Center	54	24	16	8
U50E	End	54	24	16	8
U51E	End	59	24	16	10
U52E	End	77	23.6	17.6	10.75
U53E	End	85	24.4	18.4	16.75
U54	Corner	95	23	21	19.1
U55	Corner	60	25	15	10
U56C	Center	76	24	16	12
U59E	End	65	28	15	12
U60	End	83	28	20	8.75
U61C	Center	141	30	18	18
U63E	End	75	31	17	10
U64C	Center	95	31.25	21.25	12
U65C	Center	100	35.5	19.6	10
U67C	Center	118	36	20	16
U71C	Center	108	43	15	11
U72C	Center	179	43.3	15.3	16
U73	Corner	150	38	21	19.1
U75C	Center	126	42	20	10
U81E	End	100	48.75	24.6	5.6
U87	End	157	41	25	12
URS05	Center	21	11.9	11.9	7.5
UH20C	Center	82	30	26	6.88
